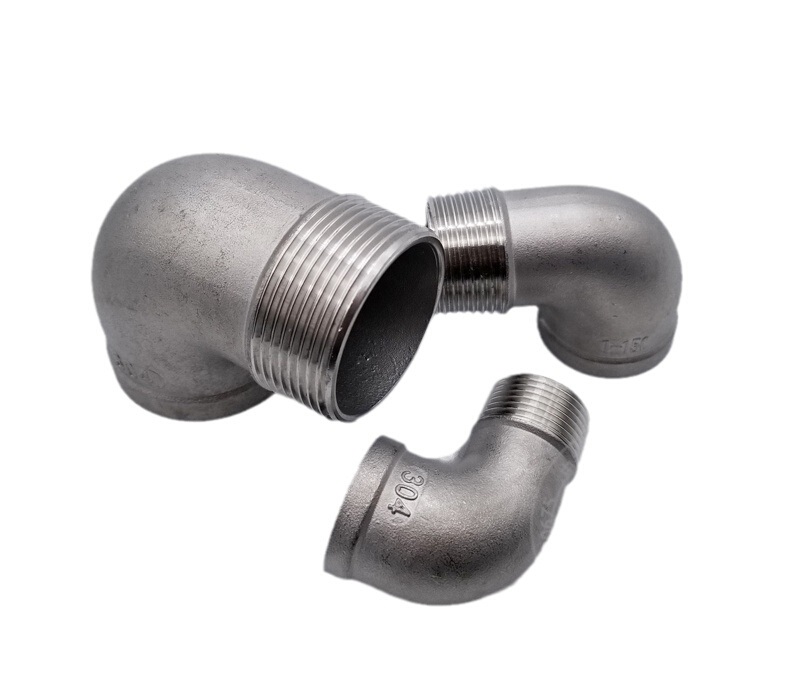

Threaded Street Elbow Specification:
|
Size |
1/8″~2″ (DN6~DN50) |
|
Class |
3000 LBS, 6000 LBS |
|
Type |
Threads: American National Standard Taper Pipe Threads, NPT(ANSI/ASME B1.20.1-1983), Also available in other thread forms: Rc, Rp, BSP, BSPT,BSPP and in any combination. |
|
Surface Treatment |
Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Soldering,Darken |
|
Materal |
Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
|
Manufacturing process |
Cutting, Heat treatment, Forging, Machining, |
|
Manufacturing Standards |
ASME 16.11, GB/T14383-2018，BS-3799 |
|
Carbon Steel |
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2... |
|
Stainless Steel |
ASTM A182 F304, 304L, 316, 316L,310S, 316Ti,317L... |
|
Duplex & Super Duplex Steel |
ASTM A 182 – F51, F53, F55, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950... |
|
Alloy Steel |
ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91... |
|
Copper Alloy Steel |
Copper Alloy Steel Forged Threaded 90 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)... |
|
Nickel Alloy |
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)... |
|
Inspection |
Chemical Elements； Mechanical Property； Metallographic Test,； HIC /SSC,； Heat Treatment,； Ultrasonic Test； Penetration Test； Magnetic Powder Test； X-Ray Test； Hydraulic Pressure Test； Blasting Experiment； we can make them according to your request. |
|
Application |
Water Disposal； Electric Power； Chemical Engineering； Ship Building； Nuclear Energy； Garbage Disposal； Natural Gas； Petroleum Oil. |
|
Note |
Our company can produce customized products according to customer requirements |
|
Threaded Pressure Class |
 |
|
Pipe Schedule |
 |
